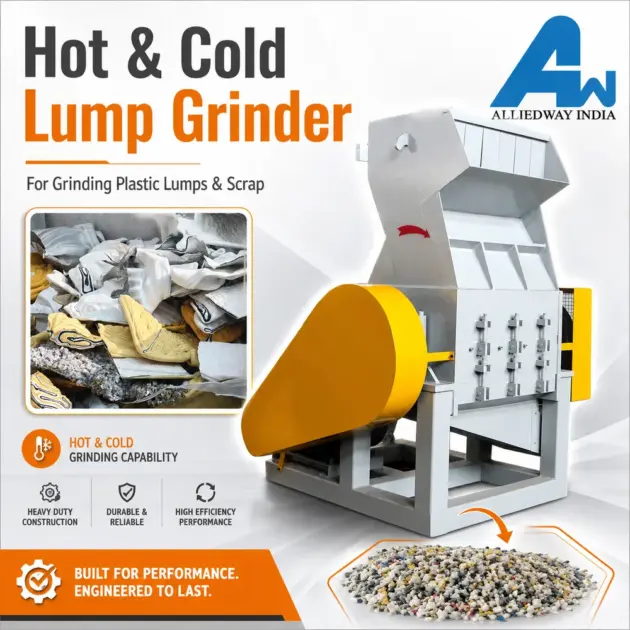

LUMPS series granulators enable gentle and thorough granulation of thick-walled mouldings, sheets, sprue cakes, pipes and profiles, etc.
Specifications
| Capacity | 800kg/h |
| Feed Size | 0–25 mm |
| Machine Type | Single Shaft |
| Body Material | MS |
| Application | Plastic Product Grinding |
| Weight | 2000 kg |
| Motor Power | 30 kw |
| Crushing capacity | 800-1000 kg/h |
| Dimension | 1600*1400*2200 mm |
| Mouth size | 810*340 mm |
| Rotary knife diameter | 450 mm |
| Rotary knife speed | 735 rpm |
| Rotary knife number | 6 |
| Fixed knife number | 4 |
| Sieve pore diameter | 14 mm |
